GL1034

GL1020

WH16F

0.6ms

Wh01

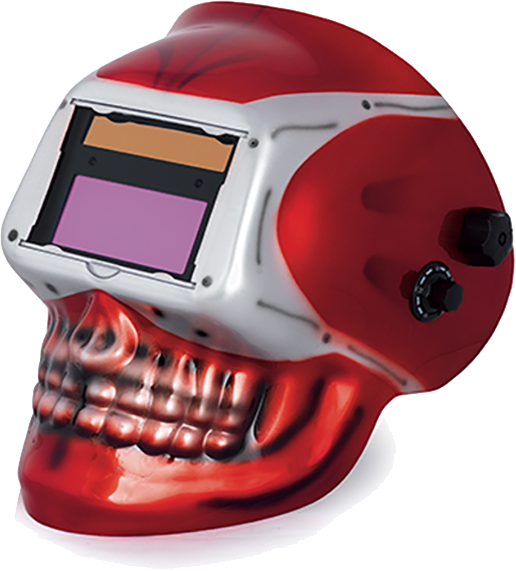

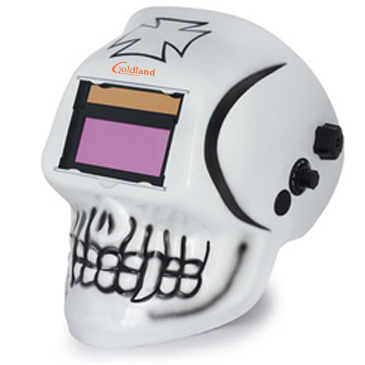

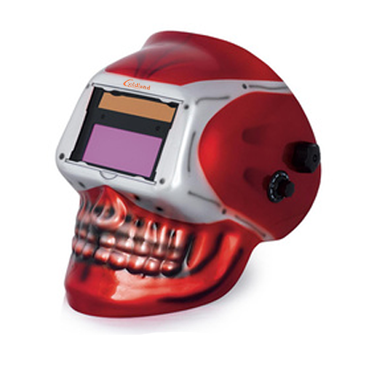

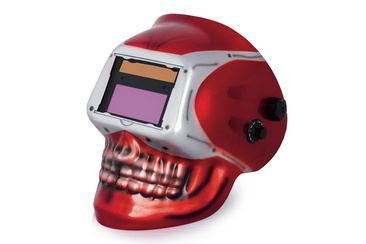

Auto Darkening weIding HeImet WH05 by Goldland

Name: Auto Darkening weIding HeImet WH05 by Goldland
Brand: welding helmet - Powered Air-Purifying Respirators (PAPR)
SKU: GL-WH17
Availability: InStock
Rating: 5 (1 reviews)

No.GL-WH17

Full head protection during welding and cutting with unrivalled ergonomics and comfortable air distribution
Slide-up mechanism for quick change between different work steps
Custom welding helmet designs can be made according to the drawings provided by customers
Multiple shade filters and various welding helmet designs can be combined and matched

Get The Latest Quote

Description

Functional Suitability for Industrial Welders
The Auto Darkening Welding Helmet WH17 is engineered for professional welders and industrial users requiring full head and eye protection during arc welding and cutting operations. This solution from experienced welding helmet manufacturers ensures operators can transition seamlessly between welding and inspection tasks with its unique slide-up design. Target users include fabrication shops, construction teams, and maintenance crews who demand certified, durable gear compatible with various welding conditions. The helmet’s ergonomic design and air distribution system reduce user fatigue, making it suitable for prolonged use in demanding operational environments.

Technical Specifications and Core Protective Features
This welding helmet features an auto darkening filter with adjustable shade levels ranging from DIN 4 to DIN 9-13, enabling optimal visibility and arc protection for varied welding intensities. The device integrates multiple arc sensors and internal sensitivity controls to guarantee prompt and reliable darkening response within 0.1 to 0.6 milliseconds. The shell is constructed of flame-retardant HDPP material, weighing between 425 and 450 grams, balancing durability and comfort. Power is sustained by solar cells supplemented with replaceable lithium batteries. Certified to CE, ANSI, CSA, and AS/NZS standards, this model conforms to the highest safety regulations expected from leading welding helmet suppliers.

Industry Application and Compliance in Safety-Critical Settings
Widely deployed across metal fabrication, automotive manufacturing, and construction industries, the WH17 enhances workplace safety by shielding welders from harmful radiation, sparks, and spatter. Its quick-slide helmet function supports workflow efficiency by allowing rapid switching without helmet removal, reducing downtime. Customizable options enable integration into corporate PPE programs with specific branding or features tailored to client requirements. Compliance with global standards ensures the helmet aligns with regulatory demands, assisting safety managers in maintaining robust protection protocols within workshop and on-site welding operations using advanced welding helmets.

Product Advantages

Structural Innovation and Modular Design Benefits
The WH17 welding helmet incorporates a modular slide-up mechanism facilitating easy access while maintaining continuous head coverage, a key structural advantage for professional use. With multiple arc sensor configurations and adaptable filter sizes, the design supports integration into diverse welding setups and environments. The use of high-density polypropylene material delivers necessary fire resistance while reducing overall weight, enhancing wearer mobility. As a product from recognized welding helmet manufacturers, it accommodates custom modifications, positioning it as a versatile asset within welding PPE portfolios offered by leading welding helmet suppliers worldwide.

Enhanced Performance and Operator Usability Features
Performance-wise, this custom welding helmet provides rapid shade transition and adjustable delay settings, minimizing eye strain and adapting to different welding processes. The ergonomic fit combined with a built-in air distribution system improves user endurance during extended shifts. Intelligent power management with solar-assisted batteries ensures uninterrupted operation, crucial in industrial scenarios where helmet failure risks downtime and injury. These features collectively increase operational safety and worker productivity, offering measurable benefits in professional welding environments requiring reliable, certified protective equipment.

GL-WH05-1001MB
Auto-Darkening Welding Helmet
Model	GL-WH05-1001MB

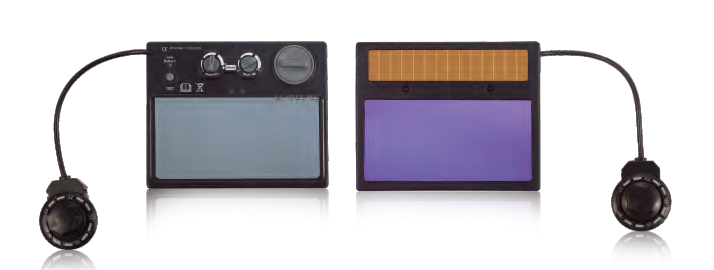

Auto Filter Model	GL-1001MB
Auto Filter Size	120 × 97 x 13mm
Viewing Area	90 × 40mm
Shade Control	Light States: DIN 4
Dark States	DIN 9 - 13 External Adjustment
Switching Time	0.6ms
Delay Control Time	0.15 - 0.3s
Sensitivity/Delay Control	Internal Adjustment
Power Supply	Solar Cells, Li - Battery ( AAA*2, Replaceable )
LED Indicator	LOW BATTLED 8 Grid LED
Lens Control	Auto-On, Auto-Off
Operating Temperature	- 10 ℃ to + 65 ℃
Grind Mode	Exlernal adjustment
Arc Sensors	2 Arc Sensors
Shell Material	HDPP ( Fireproof )
Welding Helmet Weight	450g
CE Approval	EN 166 / 175 / 379 CE, ANSI Z87.1 CSA Z94.3, AS / NZS 1338.1
CE Optical Class	1/ 1/ 1/ 2

GL-WH05-1006A
Auto-Darkening Welding Helmet
Model	GL-WH01-1006A
Auto Filter Model	GL-1006A
Auto Filter Size	110 × 90 × 9mm
Viewing Area	100 × 50mm
Shade Control	Light States: DIN 4 Dark States: DIN 9 - 13 External Adjustment
Switching Time	0.1ms
Delay Control Time	0.1 - 0.5s
Sensitivity/Delay Control	Internal Adjustment
Power Supply	Solar Cells, 3V Li-Battery ( CR2032*2, Replaceable )
Battery Indicator	Red LED light indecates that 2 - 3 days remaining battery life
Lens Control	Lens Test Button*, Auto-On, Auto-0ff
Operating Temperature	- 10 ℃ to + 65 ℃
Grind Mode	Internal Adjustment
Arc Sensors	4 Arc Sensors
Shell Material	HDPP ( Fireproof )
Welding Helmet Weight	445g
CE Approval	EN 166 / 175 / 379 CE, ANSIZ87.1 CSA Z94.3, AS / NZS 1338.1
CE Optical Class	1/ 1/ 1/ 2 True Color

GL-WH05-1004M
Auto-Darkening Welding Helmet
Model	GL-WH01-1004M

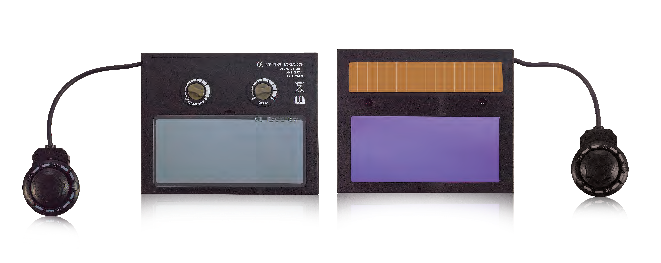

Auto Filter Model	GL-1004M
Auto Filter Size	110 × 90 × 9mm
Viewing Area	96 × 39mm
Shade Control	Light States: DIN 4 Dark States: DIN 9 - 13 External Adjustment
Switching Time	0.3ms
Delay Control Time	0.1 - 0.8s
Sensitivity/Delay Control	Internal Adjustment
Power Supply	Solar Cells, 3V Li-Battery
Lens Control	Auto-On, Auto-Off
Operating Temperature	- 10 ℃ to + 65 ℃
Grind Mode	Exlernal adjustment
Arc Sensors	2 Arc Sensors
Shell Material	HDPP ( Fireproof )
Welding Helmet Weight	430g
CE Approval	EN 166 / 175 / 379 CE, ANSI Z87.1 CSA Z94.3, AS / NZS 1338.1
CE Optical Class	1/ 1/ 1/ 2

GL-WH05-1007M1G
Auto-Darkening Welding Helmet
Model	GL-WH01-1007M1G
Auto Filter Model	GL-1007M1G
Auto Filter Size	110 × 90 × 9mm
Viewing Area	92 × 41mm
Shade Control	Light States: DIN 4 Dark States: DIN 9 - 13 External Adjustment
Switching Time	0.3ms
Delay Control Time	0.1 - 0.8s
Sensitivity /Delay Control	Internal Adjustment
Power Supply	Solar Cells, 3V Li-Battery
Lens Control	Auto-On, Auto-Off
Operating Temperature	- 10 ℃ to + 65 ℃
Grind Mode	Exlernal Adjustment
Arc Sensors	2 Arc Sensors
Shell Material	HDPP ( Fireproof )
Welding Helmet Weight	425g
CE Approval	EN 166 / 175 / 379 CE, ANSI Z87.1 CSA Z94.3, AS / NZS 1338.1
CE Optical Class	1/ 1/ 1/ 2

Use Scenarios

Application in Heavy Fabrication and Maintenance Operations
In heavy fabrication and industrial maintenance environments, the WH17 serves as essential protective equipment for welders engaged in arc welding and cutting. The helmet's fast-reacting auto darkening filter protects eyes from arc flash intensity changes typical in these workflows, while the ergonomic system supports continuous use across lengthy shifts. Compliance with recognized safety certifications enables integration into stringent workplace safety programs. Its slide-up design enhances inspection workflows by enabling welders to verify weld quality quickly without removing the helmet, optimizing operational efficiency for businesses relying on safe, high-performance welding helmets.

Role in Custom Protective Equipment Programs for Industrial Clients
Industrial clients implementing tailored safety solutions benefit from the WH17’s customization options. This custom welding helmet aligns with corporate branding and specific PPE requirements, allowing companies to standardize protective gear while addressing unique operational needs. Its certification credentials facilitate compliance with regional safety regulations, ensuring legal conformity in high-risk sectors like construction and manufacturing. By partnering with established welding helmet suppliers, companies can leverage scalable supply and technical support to maintain consistent safety standards, integrating the helmet seamlessly into existing protective equipment systems and processes.

FAQ

What materials are used in the Auto Darkening Welding Helmet WH17 to ensure safety and durability?
The WH17 helmet’s shell is made of fireproof HDPP, providing robust protection against sparks and heat. This lightweight yet durable material supports long-term use while meeting CE, ANSI, CSA, and AS/NZS safety standards, ensuring reliable performance from a trusted welding helmet manufacturer.

Can the welding helmet be customized to fit specific business branding or requirements?
Yes, the WH17 model offers customizable welding helmet designs based on customer-provided drawings. This allows welding helmet suppliers to cater to client branding needs by producing helmets that meet both protective and aesthetic specifications for various industrial applications.

How is the Auto Darkening Welding Helmet WH17 powered and maintained for optimal performance?
The WH17 helmet is powered by a combination of solar cells and replaceable lithium batteries (AAA or CR2032). This dual power supply ensures continuous auto darkening functionality. Regular battery checks and clean sensors help maintain reliable operation and extend the helmet’s service life, supporting welding helmet suppliers in delivering durable products.

What logistics and delivery options are available when ordering the WH17 welding helmet in bulk?
Delivery times vary depending on order size and destination. Goldland’s scalable supply chain supports efficient handling of large orders for distributors in over 150 countries. For precise shipping schedules and customized production plans, please contact us directly to coordinate timely delivery of certified welding helmets.
