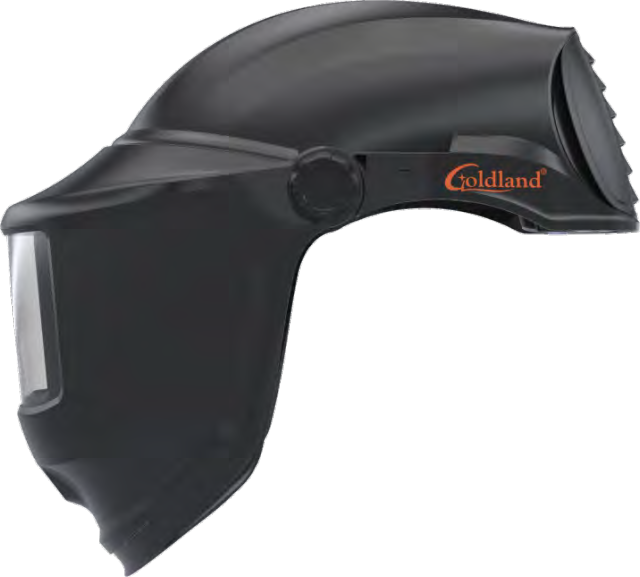

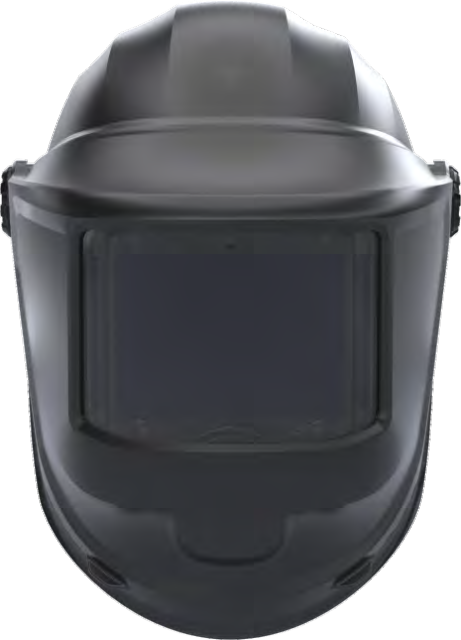

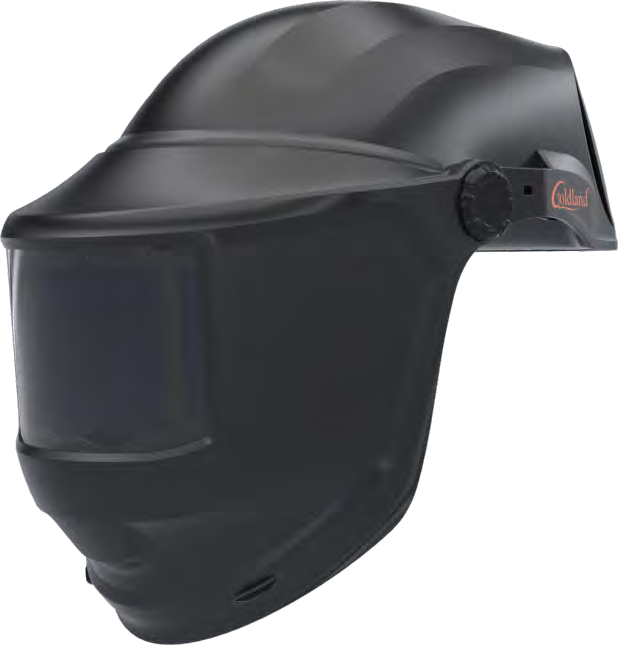

| AV06 Protective Visor Welding Helmet Hardhat With Integrated PAPR  |
|||
| Model | GL-AV06-1032A | ||
| Auto Filter Model | GL-1032A | ||
| Auto Filter Size | 142 × 126 × 9mm | ||
| Viewing Area | 110 × 80mm | ||
| Shade Control | Light States: DIN 3 Dark States: DIN 5 - 9 / 10 - 14 V1 |
||
| Switching Time | 0.04ms | ||
| Sensitivity Control | 1 - 6, 4 - 6 TIG, InternalAdjustment | ||
| Delay Control Time | 1 - 9 ( 0.1 - 1.7 sec ), InternalAdjustment | ||
| Mode Control | CUT: Shade 5 - 9, WELD: Shade 10 - 14, GRIND: Shade 3 | ||
| Adjustment Control | SENSI, DELAY, SHADE, Shade Compensation CAL | ||
| Memory Control | 3 functions to setmemory | ||
| Auto Shade/Lock Shade Control | Sensingarc light automaticallyadjusts the shade; The shadeis locked in the Dark State | ||
| Power Control | Auto ON, Auto off | ||
| Power Supply | Solar Cells, 3.7V / 500mAh Battery Rechargeable USB-C Charging Time 2 - 2.5H | ||
| Arc Sensors | 4 Arc sensors | ||
| TIG Ampere | ＞5 Ampere | ||
| ADF Optical class | 1/ 1/ 1/ 1 True Color | ||
| Operating&StoringTemperature | - 10 ℃ to + 65 ℃, - 20 ℃ to + 85 ℃ | ||
| Internal &Outside Protection Lens | Internal: 112 × 83 × 1mm & Outside: 197 × 119 × 1.5mm lnjection molding | ||
| Certification | ISO 16321 GL W3 / 5 - 9 / 10 - 14V1 CE; ANSI Z87.1 CSA Z94.3; AS / NZS 1337 / 1338 | ||
