Magnetic Centering Head, Pipe Center Finder, Pipefitter Tools, Y-Shape w/Adjustable Dial Bubble Protractor by Goldland

Product Overview

A magnetic centering head is the tool a pipefitter reaches for before a joint is fitted: it finds the center of the pipe, holds its own position on the steel, and sets the angle a branch, flange or fitting needs. It is one of those welding tools that quietly pays for itself on every spool, because the mark is right the first time instead of being wrapped, checked and rubbed out.

Two jobs in one instrument. The Y-shaped body carries three adjustable legs that sit on the pipe circumference and hold the head square to the pipe axis. The adjustable dial, with its bubble protractor, sets and reads angles. The magnetic base keeps the tool on the pipe while both hands are busy with a soapstone, punch or marker.

Where it fits in the work: branch connections, flange bolt-hole orientation, nozzle positions, and any job where an angle has to be turned from the top of the pipe round to a side or to the underside. The dial gives you a reference you can come back to, which is what makes a run of identical spools repeatable rather than re-invented every time.

Pipefitters and fit-up crews use it in spool shops and on site. Welding crews running TIG, MIG, stick or plasma use it before the arc starts, and maintenance teams use it when pipe is already hung and only a mark is needed. It sits on the same bench as the wrap-around tapes and flange aligners, and there is nothing to charge, nothing to assemble and nothing to set beyond the legs and the dial.

Goldland has been a welding accessories supplier to distributors, brand owners and workshops for more than 20 years, exporting to 150+ countries. This centering head belongs to the accessory layer of that range: a simple tool to stock, easy to explain across a counter, and quick to demonstrate to a fitter who has been making do with dividers.

Y-Shape Body & Magnetic Hold

• Y-shaped body. Three legs spread from a central hub, so the head sits on the pipe with an even stance instead of rocking on a single point of contact.
• Adjustable legs. Set the legs to the pipe you are running and the tool seats on the circumference rather than standing off it; the next length of the same pipe takes the same setting.
• Contact on the curve. The legs are shaped to sit against the curve of the pipe, so the head stays where you place it instead of sliding when you lean on it or drag a marker along the dial.

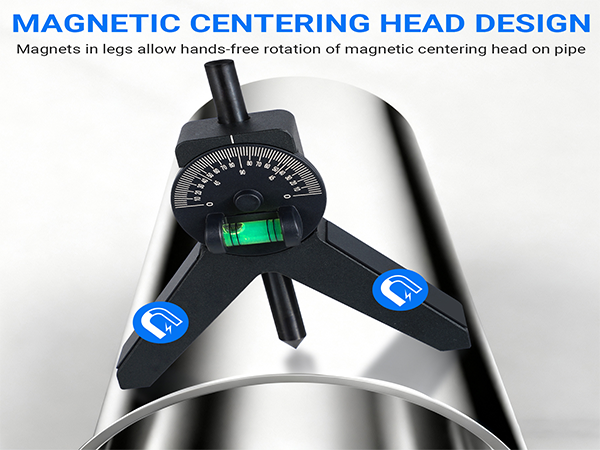

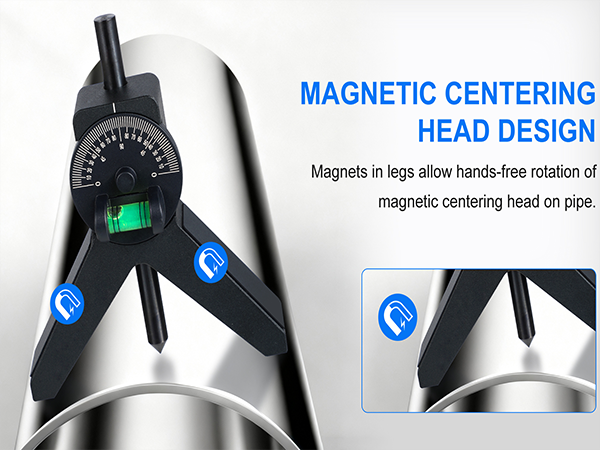

• Magnetic base. On steel pipe the magnet does the holding. You can let go, pick up a punch, and the head is still sitting on the same mark when you come back — one pair of hands is enough for a normally two-hand job.
• Pipe, plate and flange faces. The hold comes from the magnet rather than from the curve, so the head is just as useful against a flange face, a steel plate or a structural member as it is on the round.
• A solid working unit. One body, an adjustable leg set, a printed dial and a bubble vial — no folding parts to bend, so it holds up like the rest of the welding tools in a fitter's bag rather than like a shop-made template.
• A straightforward stock line. Nothing to assemble, nothing to charge and no wear parts to kit, which is the profile that moves steadily in welding supplies catalogues and on a distributor's shelf.

Setting Up on the Pipe

1. Set the legs to your pipe. Loosen the three adjustable legs and open them until the Y-body sits on the circumference without rocking, then tighten them down. Once a size is set, the head drops straight onto the next length of the same pipe.
2. Seat the head on the pipe. Put all three legs in contact and turn the dial towards you; on a bench you can rotate the pipe, on site you position the tool where you can read it.
3. Let the magnet take hold. On steel pipe the base grips the surface, which is what frees both hands for a marker or a center punch.
4. Level the vial before you read anything. The bubble in the protractor is your reference for level; get the vial sitting true, then read the dial.
5. Set the angle you need. Turn the adjustable dial to the angle the drawing calls for and keep that reading — this is the number you will transfer to the other end of the spool.
6. Mark and punch while the tool is still on the pipe. Draw the center line, then punch the center with the head in position so the punch lands exactly on the mark. A center that is punched true is what lets a joint close evenly, and it is the reason crews ordering TIG welding accessories in volume usually add this head to the same order.
7. Move down the run and repeat. The legs and the dial keep their setting between joints, so every piece is laid out the same way — the small detail that keeps a finished spool square.

Specifications

Pipe Layout Applications

• Spool and pipe fabrication shops. Center lines and branch positions are marked on the length before cutting and fitting, so the fitter is not measuring the same joint twice.
• Branch connections and tees. The dial sets the angle at which a branch comes off the run, and the same reading transfers to the matching piece.
• Flange and bolt-hole orientation. Turning bolt-hole orientation from the top of the pipe round to a side or the underside is the job fitters most often do with dividers and a rule today.
• Site fit-up and shutdown work. When the pipe is already hung and cannot be rotated, the magnetic hold lets a mark be made in place instead of waiting for a bench.
• TIG crews building a torch-side kit. Nothing about the head ties it to one process, but shops that buy TIG welding accessories in volume tend to take a batch of these at the same time, because the fitter and the welder are working the same joint.
• MIG and high-production benches. On a bench running MIG welding accessories and consumables all day, the centering head is what keeps repeated parts identical: set the legs and the dial once, then mark every piece in the run the same way.
• Counter and catalogue stock. As a warehouse line it sits in the welding accessories group beside the wrap-around tapes and flange aligners, needs no long explanation, and is easy to demonstrate to a walk-in fitter.

Build, Finish & Service Life

The head is built from durable materials chosen for a working shop: a solid body, adjustable legs with enough stiffness to stay where they are set, a printed dial and a bubble vial seated in the protractor. The finish is a matte black that hides handling marks and does not throw glare back at you under site lighting.

Nothing on the tool wears out quickly. The parts that take the most contact are the leg faces and the vial, so keep the leg faces free of grit — a leg sitting on swarf will not seat flat and the center will drift. If the tool has had a hard drop, check the vial against a known level before you trust a reading, and wipe the dial after abrasive work so the markings stay readable.

Accuracy comes from how the head is set more than from the tool itself: all three legs in contact, the vial levelled, then the dial read. It stores in a tool bag or a drawer and takes up less room than a wrap-around tape. Buyers who keep a welding accessories range on the shelf can treat it as a repeat line rather than a one-off, because the construction and the markings stay consistent from one order to the next.

Ordering & Delivery

1. Tell us the pipe sizes you run most. Give the diameters and wall thicknesses you work with, and say whether the head is mostly for center finding or also for angle layout, so we can confirm the fit range with you before you commit.
2. Say how many you need and where they are going. A single head for the layout bench, one per fitter, or a kit alongside your other fit-up tools — tell your sales contact what the working unit should be.
3. Confirm the packing unit. Ask your sales contact how this head is packed and how you would like it presented for your market, and agree the packing details before the first order rather than after it.
4. Request a sample and test it on your own pipe. Check the legs seat flat, the dial turns and holds, and the vial reads true on the material you actually run before you place a volume order.
5. Add it to an existing order if you buy welding supplies from us. Ask whether this head can travel with your other items on the same shipment so it is not handled as a separate small parcel.
6. If your line card already carries MIG welding accessories or other pipe tools, this head fits the same buyer and can be introduced at the same time, which keeps the range simple to explain at the counter.
7. Tell us the market you sell into, and we will confirm what documentation is relevant for the items on that particular order.
8. Confirm lead time and shipping terms with your sales contact when you order, and ask about repeat supply. Goldland is a welding accessories supplier with more than 20 years of export manufacturing behind it, and holding a line across several orders is normal for us.

Testing & Compliance

Compliance is part of how Goldland ships, not paperwork added at the end. Products are tested against the standards each destination market requires, and third-party test reports, declarations and certificates are supplied with your order where they apply — so you receive documentation that matches the items and markets you actually buy, not a generic sheet. If your compliance team needs specific test evidence or a report for customs, tell us the standard and the destination and we will confirm what is available before you commit.
