Magnetic Centering Head, Pipe Center Finder, Pipefitter Tools, Y-Shape w/Adjustable Dial Bubble Protractor (large size) by Goldland

Product Overview

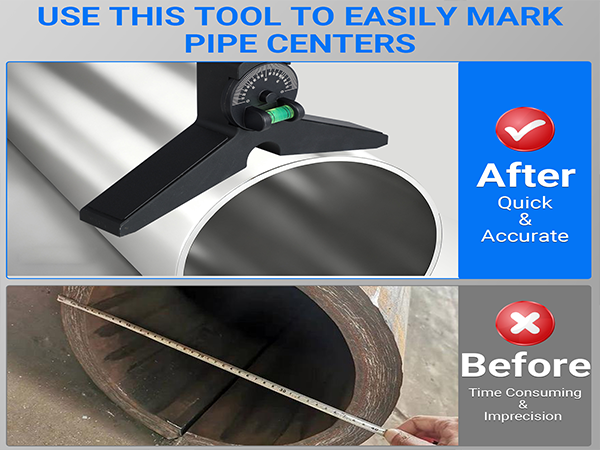

A magnetic centering head is the tool you reach for when a joint has to be laid out on the pipe itself rather than on a bench. The Y-shaped body straddles the pipe, three adjustable legs take hold of the circumference, and magnets in the legs keep the head where you put it, so both hands stay free for the dial, the marker and the hammer. This is the large size: the same body, dial and punch as the standard model, built for bigger pipe and heavier layout work. Seat it on a spool, turn the dial to the angle you need, mark the center through the marking column or with the center punch, and lift it off once the mark is made.

It is one of those pipefitter tools that pays for itself in the fitting bay — a center marked square to the run instead of guessed at, a branch or support angle carried around the circumference in one setting, a centerline the welder can still find after the joint is tacked. This is a welding tools item in the truest sense: it does one job, does it without a second pair of hands, and goes back in the bag as soon as the mark is on the pipe.

There is nothing specialist about buying it. The head is a stock item in a range your fitting crew already orders from, so replacing a worn one or adding a second for a new fitter is a normal part of a welding supplies order rather than a one-off.

Y-Body, Legs & Construction

• Y-shaped body, three adjustable legs — the legs meet the pipe at three points around the circumference, so the head sits square on a round surface instead of rocking or sliding. Adjust them to the pipe in front of you and one head covers a range of diameters rather than a single pipe size.

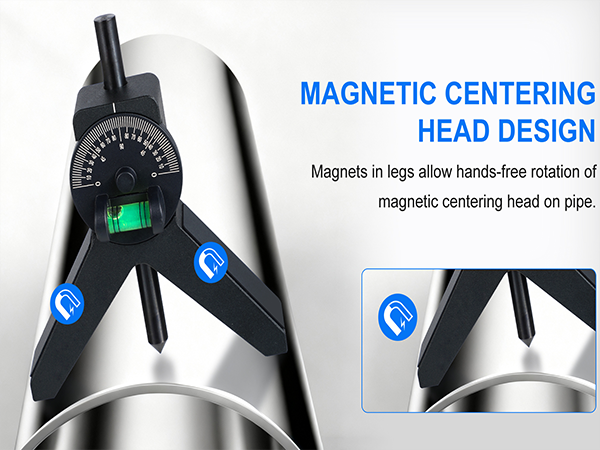

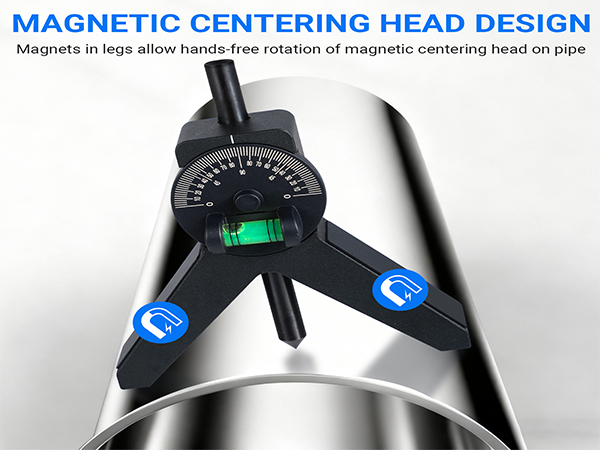

• Magnets in the legs — the magnetic legs are what make this a hands-free tool. Seat the head, let the magnets pull the body flat, and it stays where you put it while you reach for a marker, a hammer or the next length of pipe; it also rotates around the circumference without being lifted off, so a setting travels with the head.

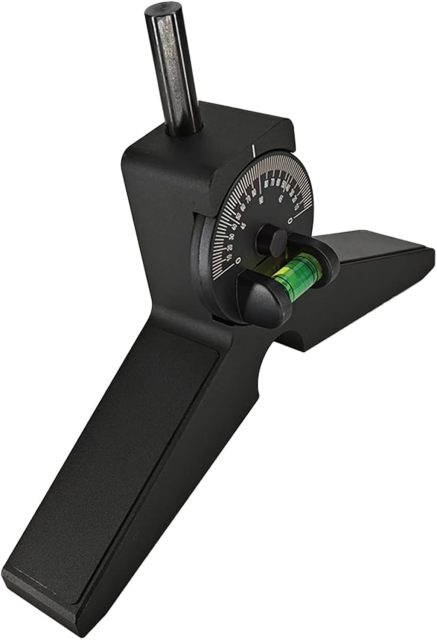

• Built for daily professional use — a solid matte black body, a printed degree dial, a smooth metal punch pin and a green bubble vial set into the head. There are no loose parts to lose on site, and the tool is sized for a working shop rather than occasional light use.
• Know which parts decide accuracy — the dial face and the bubble window are what you read from, and the punch pin is what leaves the mark. Keep the dial and the vial clear of grit, wipe them with a dry cloth, and keep the magnet faces free of swarf so the legs sit flat every time.
• Storing it between jobs — the head belongs in a kit bag or the tool tray rather than loose in a bucket, which is where a knocked bubble vial usually comes from.
• Two sizes, one design — the large head and the standard size share the same Y-body, dial and punch, so a shop can add the large size to the welding supplies it already carries without changing the way the crew works.
• Made by the manufacturer — Goldland has been building welding safety equipment and the tools that go with it since 2005, and works as a welding accessories supplier to distributors and fabrication crews in more than 150 countries.

Setting & Transferring Angles

1. Seat the head on the pipe. Set the three adjustable legs on the circumference, let the magnets pull the body flat, and check that all three legs are touching before you read anything from the dial.

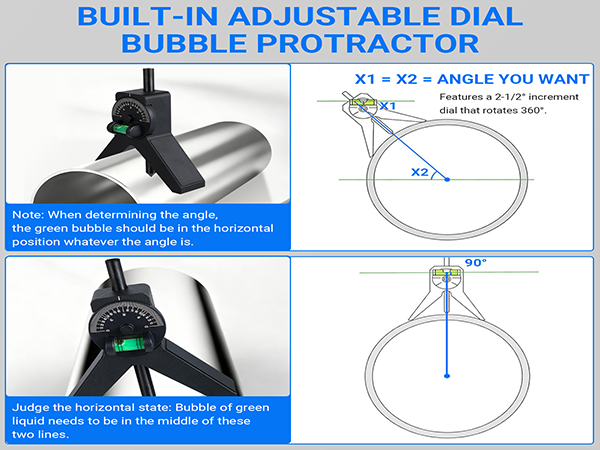

2. Turn the dial to the angle you want. The degree dial is printed with tick marks and rotates through a full circle, so a branch angle, a support position or a weld-prep line is set from the scale rather than estimated by eye — and the same angle can be dialled in from either side of the pipe.
3. Check the bubble before you trust the number. When you are determining the angle, the green bubble should sit in the horizontal position whatever the angle of the pipe is; the reading is good when the bubble is between the two lines on the vial.
4. Carry the setting around the circumference. Because the magnets hold the head in place, it can be rotated around the pipe without being lifted off, and the angle you set stays set as you move to the next position. That is what makes a branch or support angle repeatable rather than measured three times.
5. Re-check before you commit. If the head was knocked or the legs were moved between marks, seat it again and read the dial once more — a head resting on two legs instead of three will still look level.
6. Work ahead of the weld. Angle work happens at the fitting stage: the mark goes on while the pipe is still being positioned, so the reference is in place before the joint is tacked and before the TIG welding accessories come out of the bag.

Specifications

Center Punch & Marking Column

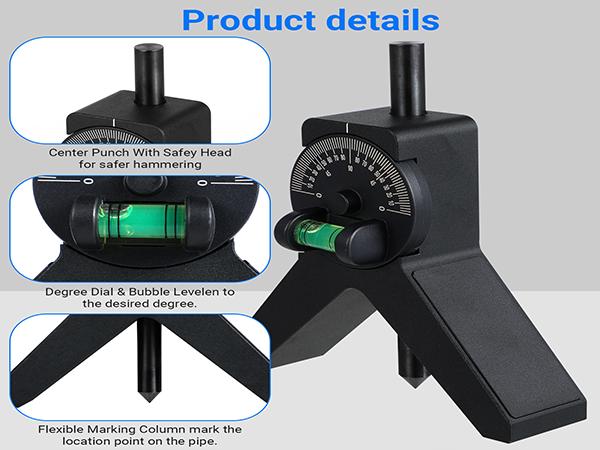

• Center punch with safety head — a vertical pin set into the body of the head. One tap with a hammer leaves a clean center mark in the pipe, and the safety head is there for safer hammering: the hammer lands on the head rather than on the top of the pin.
• Flexible marking column — the column marks the location point on the pipe. It takes a pencil, a marker or soapstone, so a joint line or a layout mark can be laid out and inspected before anything is struck.
• Mark first, punch second — on coated, painted or finished pipe, put the position on with the marking column, check it against the run, and only then tap the punch. Working in that order keeps a wrong punch mark off pipe you cannot easily dress back.
• Two marks in one setting — the column carries the joint line and the punch carries the center point; on a joint set up with TIG welding accessories, both marks are what the fitter aligns to, and both are made with the head still seated on the pipe.
• A mark that survives the fitting session — a punched center is a physical dent rather than a chalk line, so it is still readable when the MIG welding accessories come out and the joint is tacked.
• One-person operation — nothing has to be held by a second pair of hands while the mark is made; the magnets keep the head on the pipe and the fitter is free to mark or to swing the hammer.
• Back in the bag — the head does the centering job on its own and goes back into the welding tools bag as soon as the mark is on the pipe, instead of staying on the joint as another clamp to work around.
• Keep the punch true — a bent pin or a chipped punch changes where the mark lands. Store the head so the pin is not carrying its weight, and check that the pin is straight before a long run of marks.

Large Size & Big-Bore Work

Two sizes of this head can be used to mark centers on pipes of varying diameters, and this is the large one. The extra reach is what separates it from the standard size: on wide, heavy-wall pipe the legs get a clean seat on the circumference and the dial stays clear of the surface while you read it.

That reach matters on the big end of the work — large-bore spools, headers, process piping and heavy branch connections, where a center has to be found quickly, carried around the circumference and trusted by the time the joint is tacked. It is also the size that suits heavy layout work in a fabrication shop, where the head is set on several joints in a shift and has to stay steady each time.

The standard size still wins in congested places: short spools, tight racks, small-bore runs and anywhere a compact head is easier to handle. If your crew works both ends of the range, the large head and the standard head are usually ordered together, so the whole pipe layout range comes out of the same welding accessories order. Send us the pipe diameters your fitting crew actually works on and we will confirm which size — or which pair — belongs in the kit.

Ordering & Confirmation

1. Confirm the size first. Two sizes are available, and this large head is the one for bigger pipe and heavier layout work. Tell us the pipe diameters your crew works on and we will confirm whether the large size, the standard size or both belong in the kit.
2. Confirm the count per crew. Heads are normally bought one per fitter or one per work front, so the quantity usually follows the size of your fitting gang; if you are kitting out a project, give us the number of fitters and we will work it through with you.
3. Tell us what the crew fits up. Big-bore spool work, general pipefitting, or day-to-day MIG welding accessories and TIG fit-up — the job tells us whether one head is enough or whether the crew needs both sizes in the bag.
4. Order it with the rest of the layout kit. The head sits on the same list as the wrap-around measuring tapes, flange aligners and cover lenses, so a project can be kitted out in one order instead of four.
5. Source it from one place. As a welding accessories supplier we manufacture the protective equipment and the fit-up tools, so the head, the tapes and the aligners can be ordered together on one set of terms.
6. Confirm packing, lead time and payment when you order. Packing format, production lead time, shipping terms and payment are confirmed against the actual order and destination — ask your sales contact for current terms before the order is placed.
7. Ask for what your purchasing file needs. If your team needs dimensions, materials or packing details in writing, or if you are evaluating the head for the first time, ask your sales contact about sample availability and about what we can confirm in writing.

Testing & Compliance

Compliance is part of how Goldland ships, not paperwork added at the end. Products are tested against the standards each destination market requires, and third-party test reports, declarations and certificates are supplied with your order where they apply — so you receive documentation that matches the items and markets you actually buy, not a generic sheet. If your compliance team needs specific test evidence or a report for customs, tell us the standard and the destination and we will confirm what is available before you commit.
